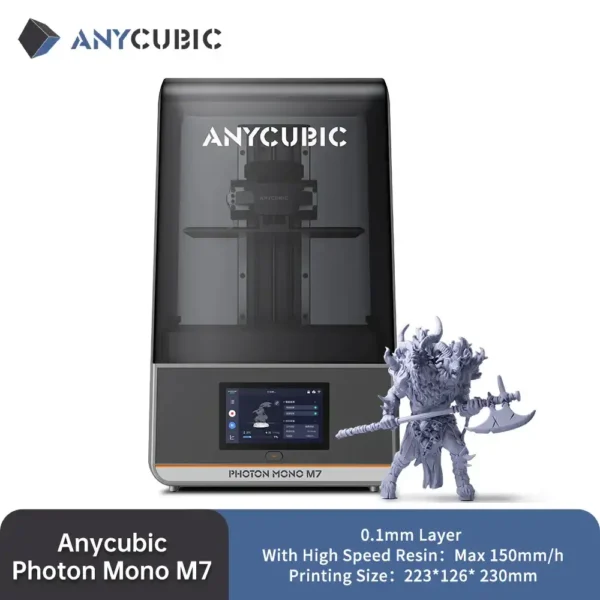

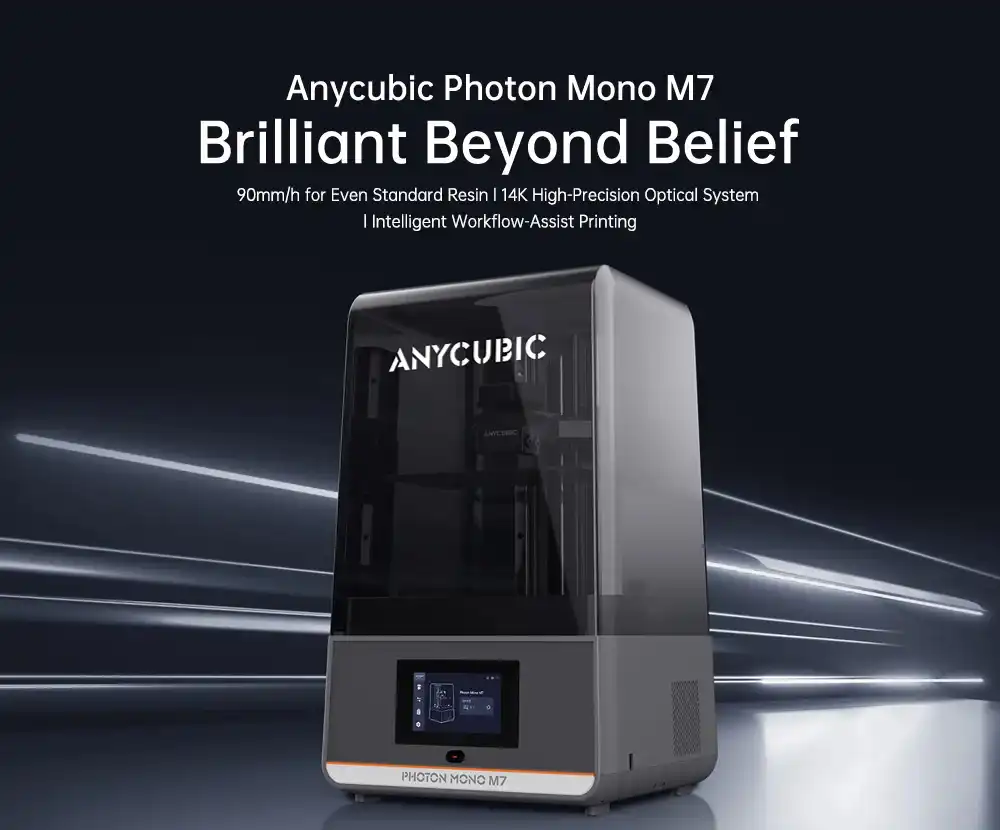

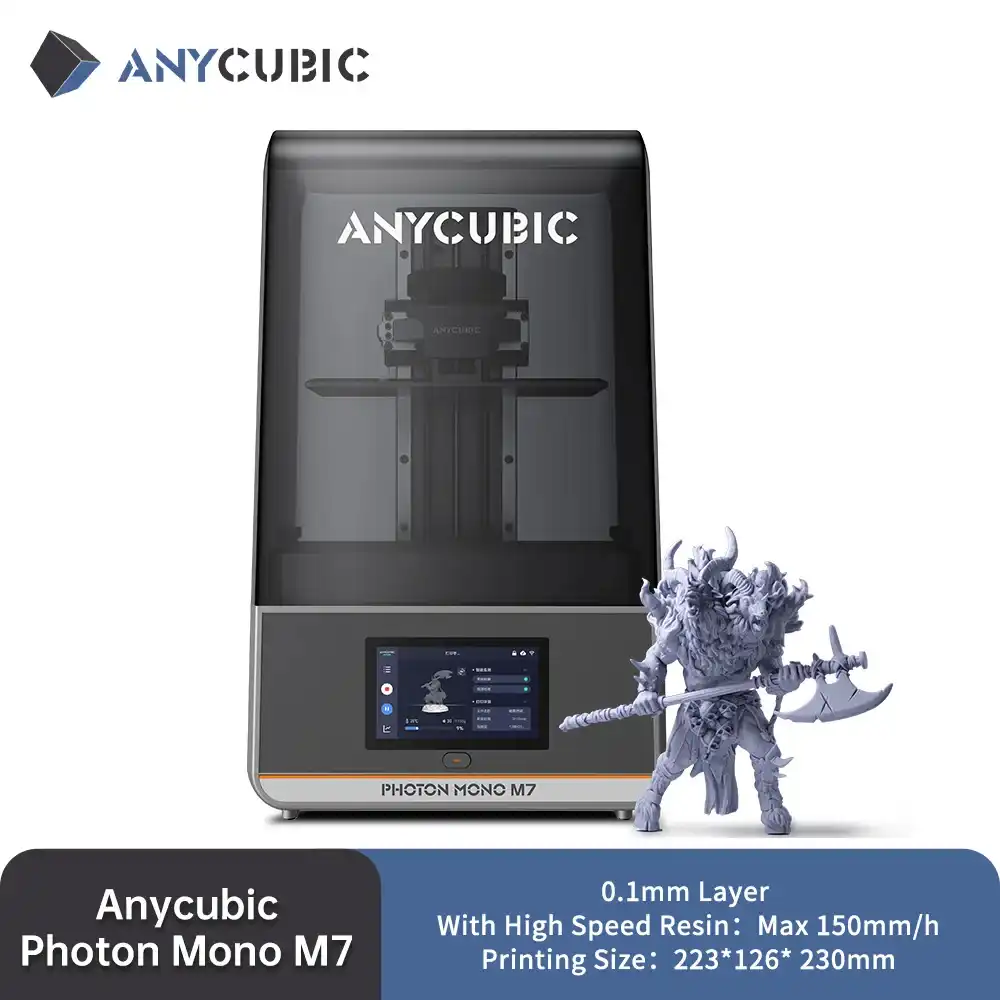

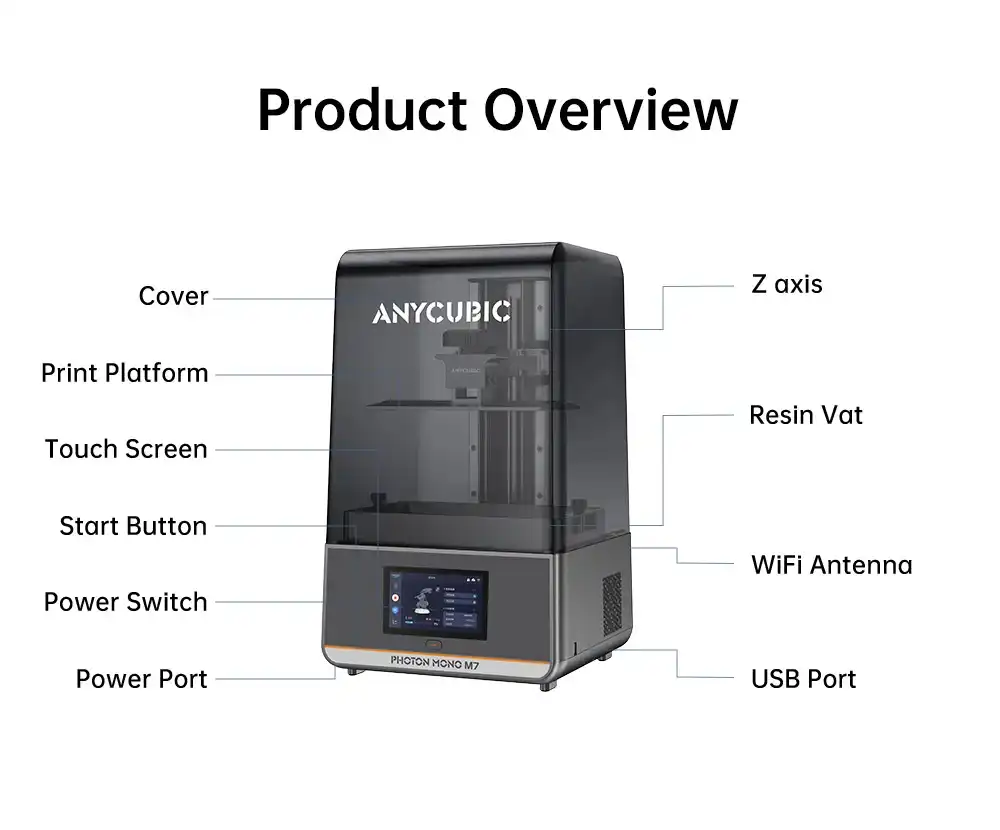

ANYCUBIC Photon Mono M7 Mono MSLA 3D Printer

Description

The ANYCUBIC Photon Mono M7 is a high-speed resin MSLA (Masked Stereolithography) 3D printer designed for precision and efficiency, ideal for hobbyists, professionals, and businesses. Below is a detailed overview based on available information:

Key Features:

Print Speed:

– Up to **90 mm/h** with standard resin at 0.1 mm layer height.
– Up to **150 mm/h** with Anycubic High-Speed Resin 2.0 at 0.1 mm layer height.
– At 0.05 mm layer height (high-precision mode), speed is slightly reduced for finer details.

Resolution:

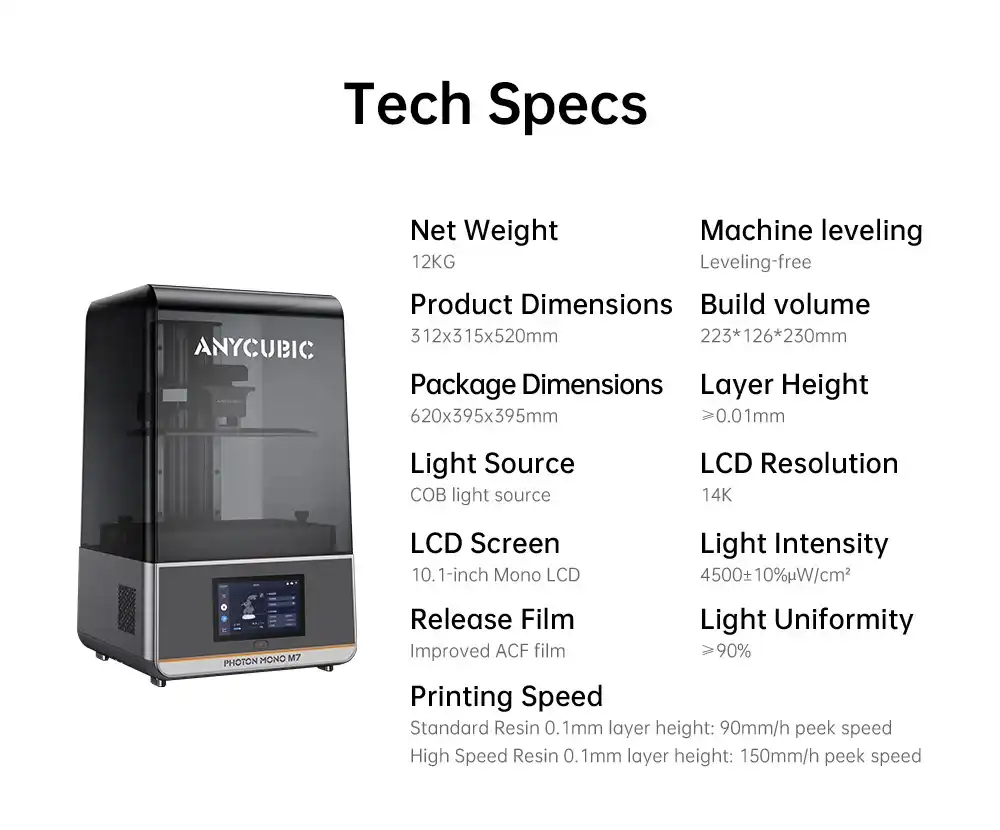

– Equipped with a **10.1-inch 14K monochrome LCD** screen (13312 x 5120 pixels), offering an XY pixel size of **16.8 x 24.8 µm** for highly detailed prints.
– Minimum forming diameter of **0.15 mm** and outlet diameter of **0.25 mm**, with model accuracy errors of **±0.01–0.05 mm**.

Build Volume:

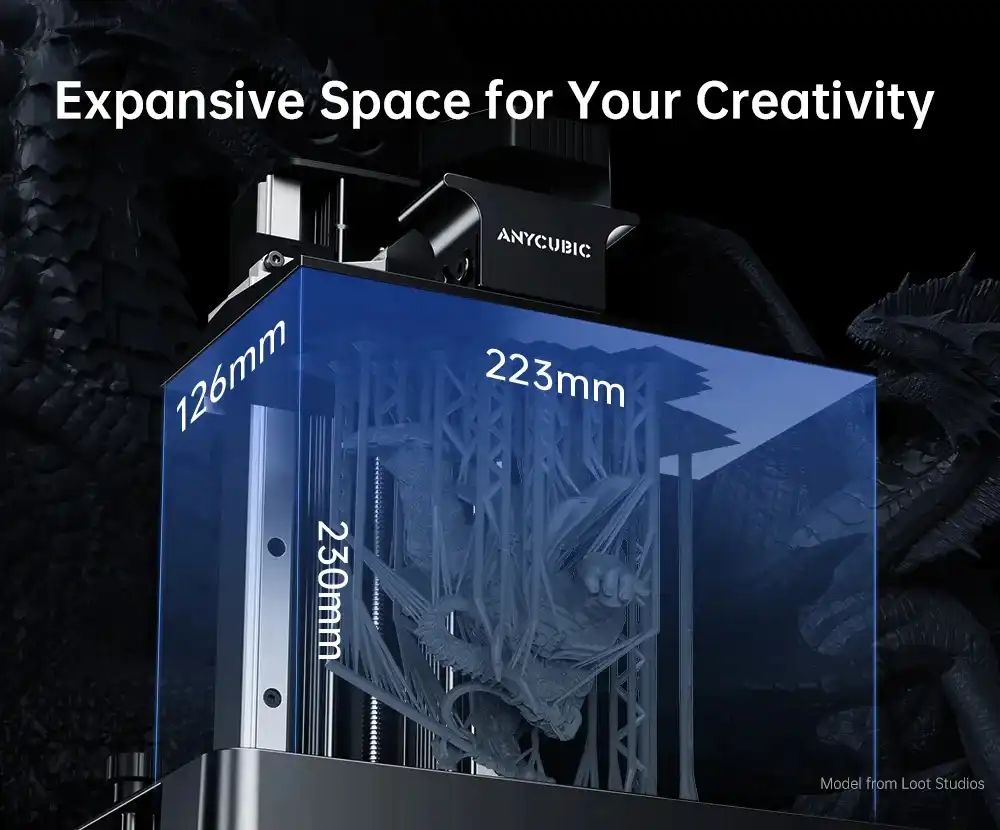

– **223 x 126 x 230 mm** (8.77 x 4.96 x 9.05 inches), providing ample space for larger models or batch printing.

Light Source:

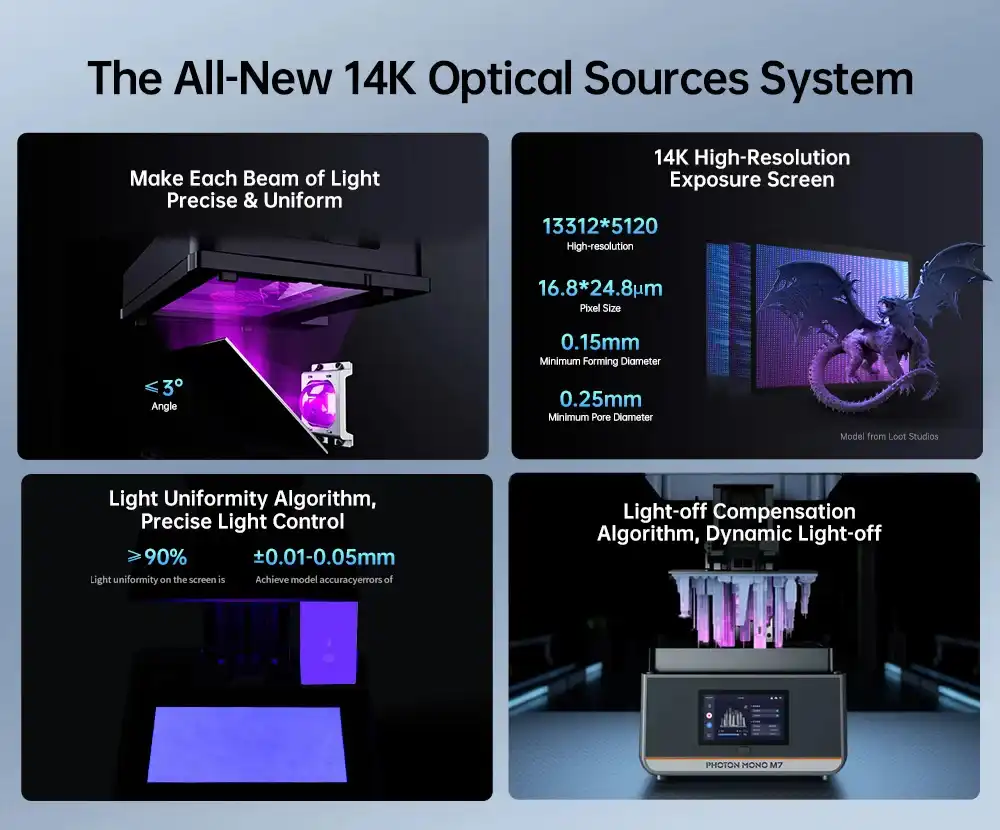

– Features the **LighTurbo 3.0 system** with a COB (Chip-on-Board) light source, Fresnel lenses, and front-facing reflectors, ensuring **≥90% light uniformity** across the screen for consistent prints.

Intelligent Features:

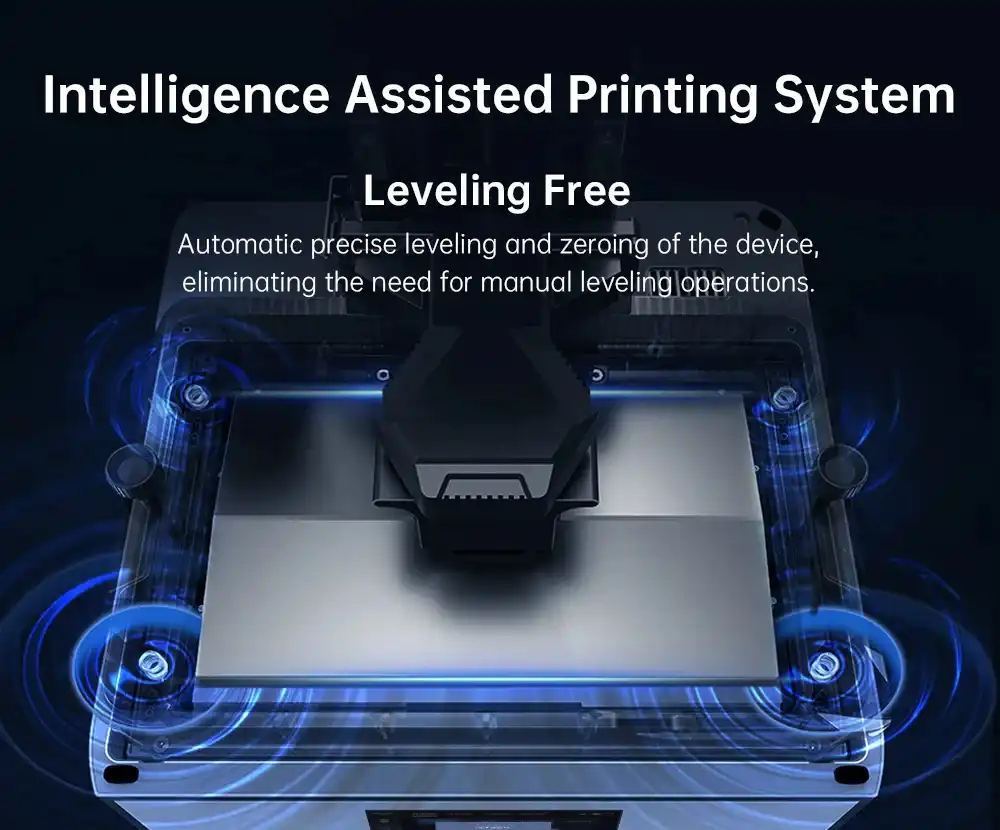

– **Automatic Leveling**: 4-point leveling system for precise build plate alignment.
– **Auto Resin Refill and Withdrawal**: Supports continuous printing with automatic resin management.

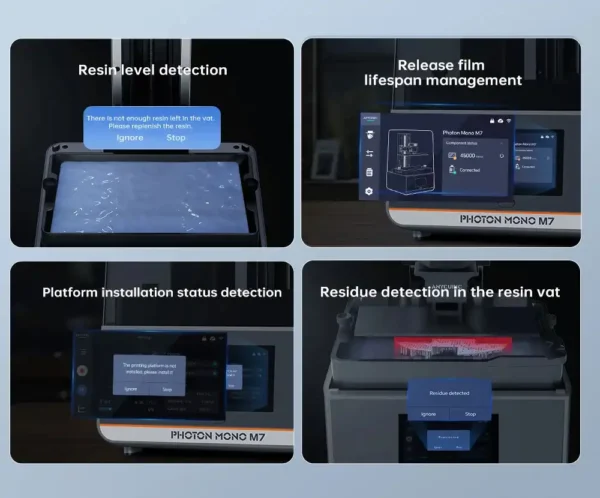

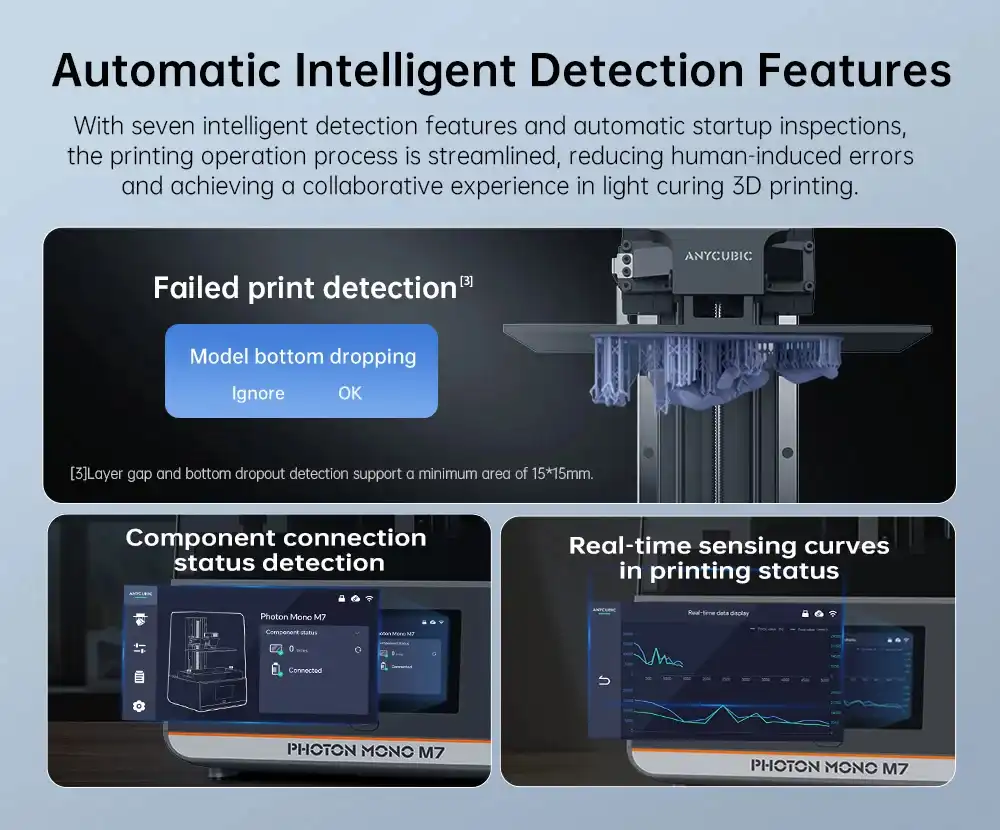

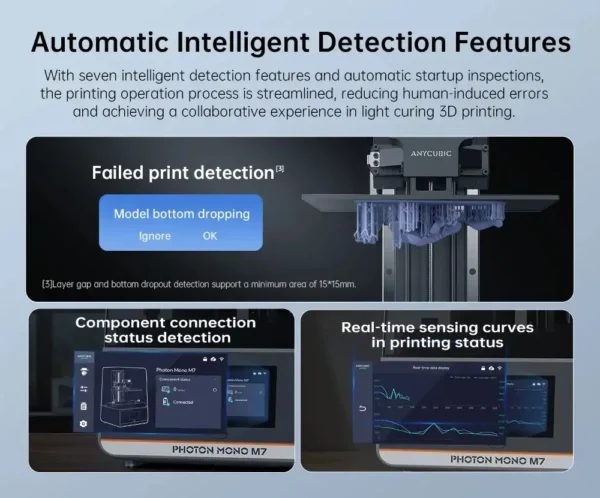

– **Intelligent Workflow-Assist**: Includes failed print detection (stops printing if errors like layer gaps or detachment occur), resin level monitoring, and release film usage tracking (alerts at 45,000 operations).
– **Light-off Compensation Algorithm**: Dynamically adjusts light-off time based on exposure area and resin flow, improving print success rates.



Additional Features:
– **Laser-etched Build Plate**: Enhances print adhesion while allowing easy removal.
– Supports **USB and Anycubic App** for remote task management and offline printing.

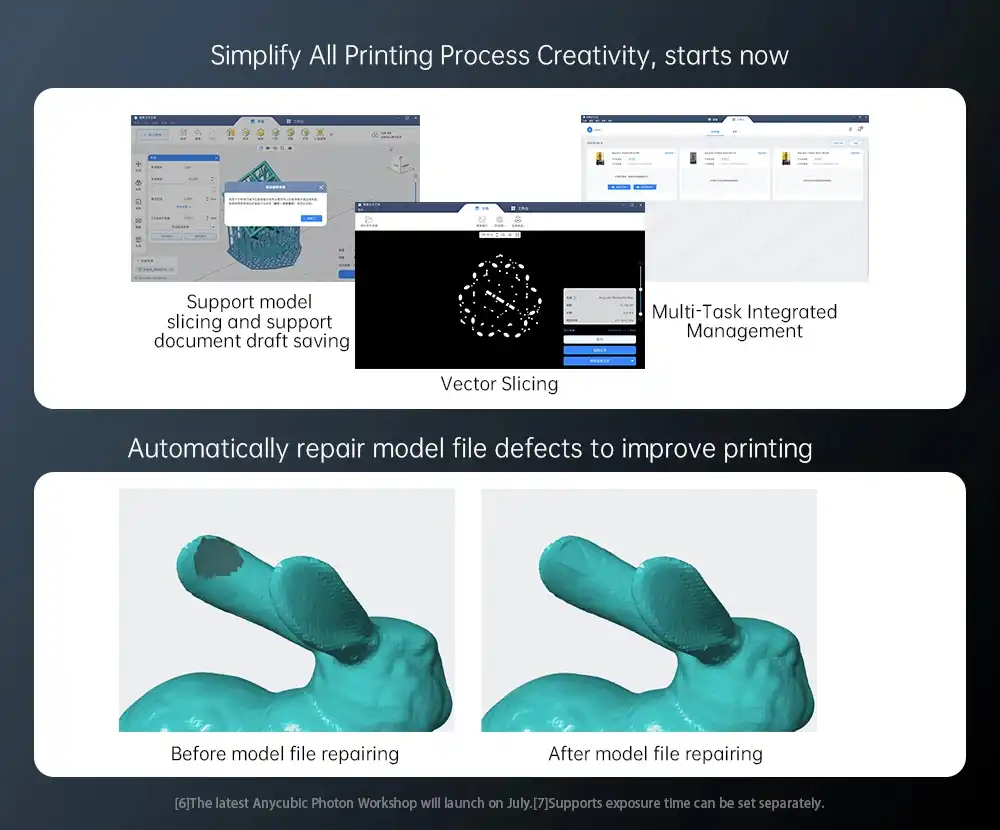

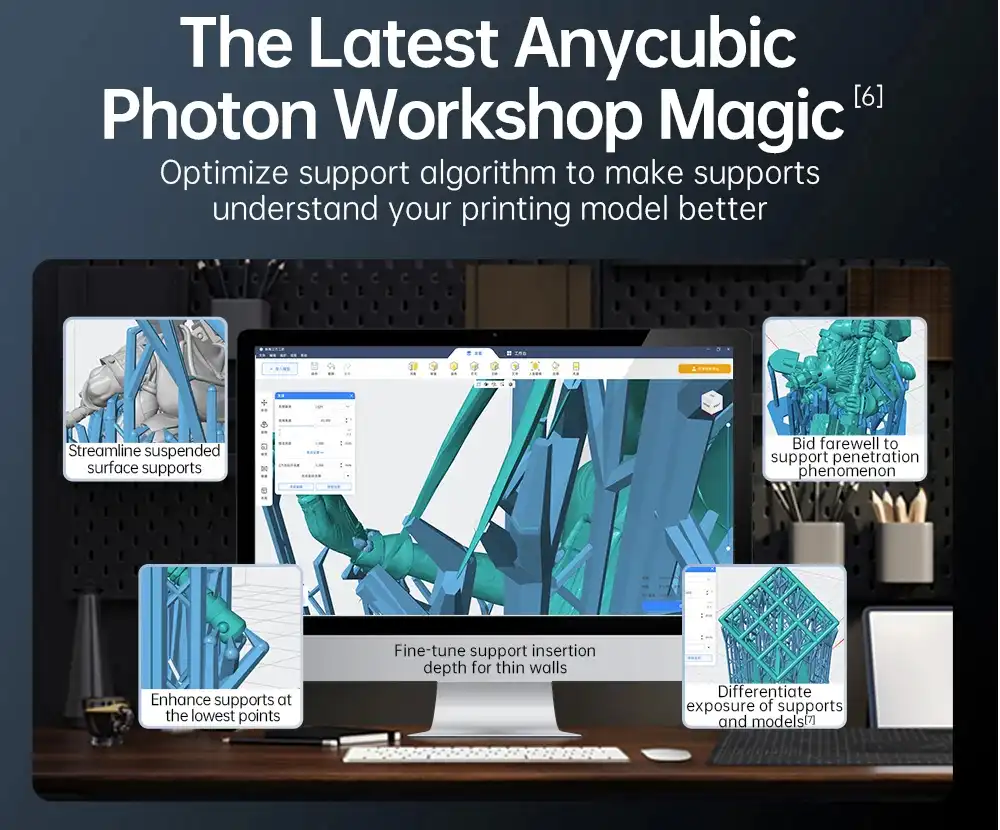

– Compatible with **Anycubic’s slicing software** (available for download) and third-party resins, with optimized settings for Liqcreate photopolymers.

Limitations:

– No Temperature Control: Unlike the M7 Pro, the M7 lacks a dynamic temperature control resin vat, which may affect performance in colder environments.
– **Release Film Cost**: While durable (up to 45,000 impressions), replacement films cost ~$10 each.
– **Slower Than M7 Pro**: The M7 Pro offers faster speeds (130 mm/h standard, 170 mm/h high-speed resin) and additional features like temperature control.



Use Cases:

– Ideal for **jewelry design, prototyping, engineering models**, and detailed miniatures due to its high resolution and speed.
– Suitable for both beginners and professionals, with user-friendly features like auto-leveling and intelligent monitoring.

Notes:

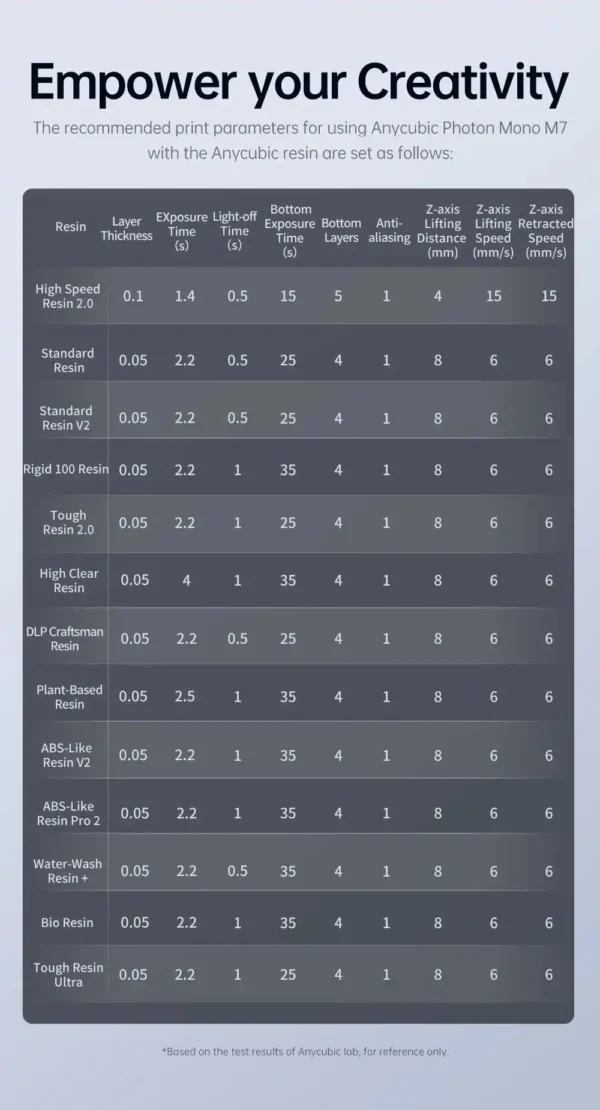

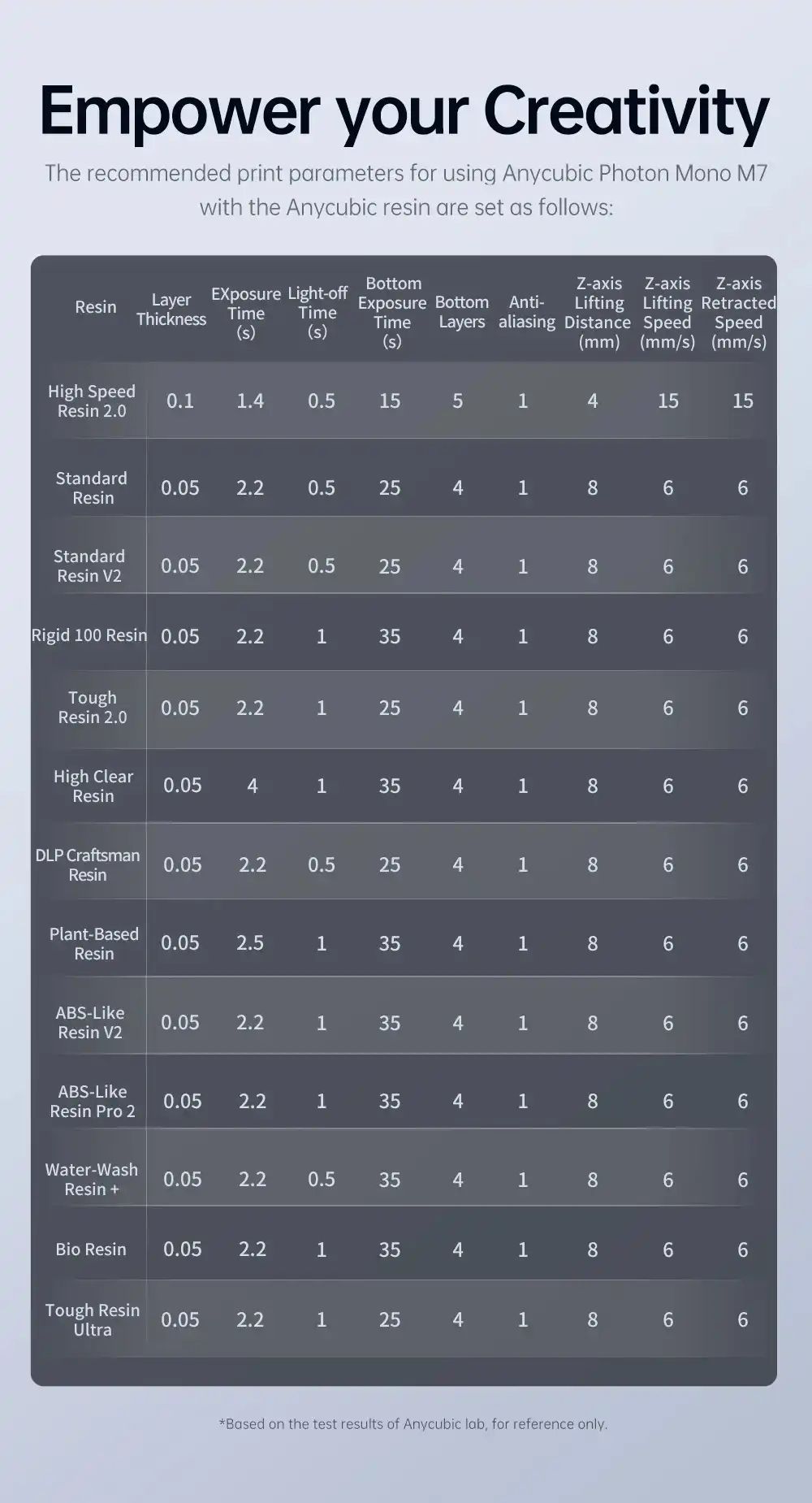

– For resin settings, check Anycubic’s official resin settings guide or third-party resources like Liqcreate for compatible photopolymers.
– The M7 is a more affordable alternative to the **Photon Mono M7 Pro**, trading off some advanced features (e.g., temperature control, faster speeds) for a lower price point.
– Always verify specifications with the retailer, as some sources list slight variations in print size or features.
